Standalone component
PTO Hydraulic Pump
- Pump only
- Requires a separate reservoir
- Requires filtration and fittings
- Requires a mounting plan
3-point hitch hydraulic power
HyPo-Max PTO Hydraulic Power Pack for Tractors
Give your tractor the hydraulic power it needs to run hydraulically driven attachments—without replacing the tractor.
- ✓ Complete PTO-driven hydraulic system
- ✓ 15.4, 16.6, or 21.2 GPM pump options
- ✓ 15- or 25-gallon tank options
- ✓ Available assembled or unassembled
540RPM PTO
2,500PSI
Cat 1Hitch pins
Questions before ordering? Call (833) Green-08 or email Green Hoe.
Keep the tractor. Add the power.
Need More Hydraulic Power From the Tractor You Already Own?
Your tractor may be able to carry the attachment but still fall short on the hydraulic flow needed to run it properly. HyPo-Max uses the rear PTO to provide a separate source of hydraulic power.
That means you can put more attachments to work without buying another tractor or piecing together a pump, reservoir, filter, fittings, and mounting hardware on your own.
More than a pump
A Complete PTO Hydraulic Power Pack
A standalone PTO hydraulic pump is only one component. HyPo-Max brings the working system together in a tractor-ready package.
Complete system

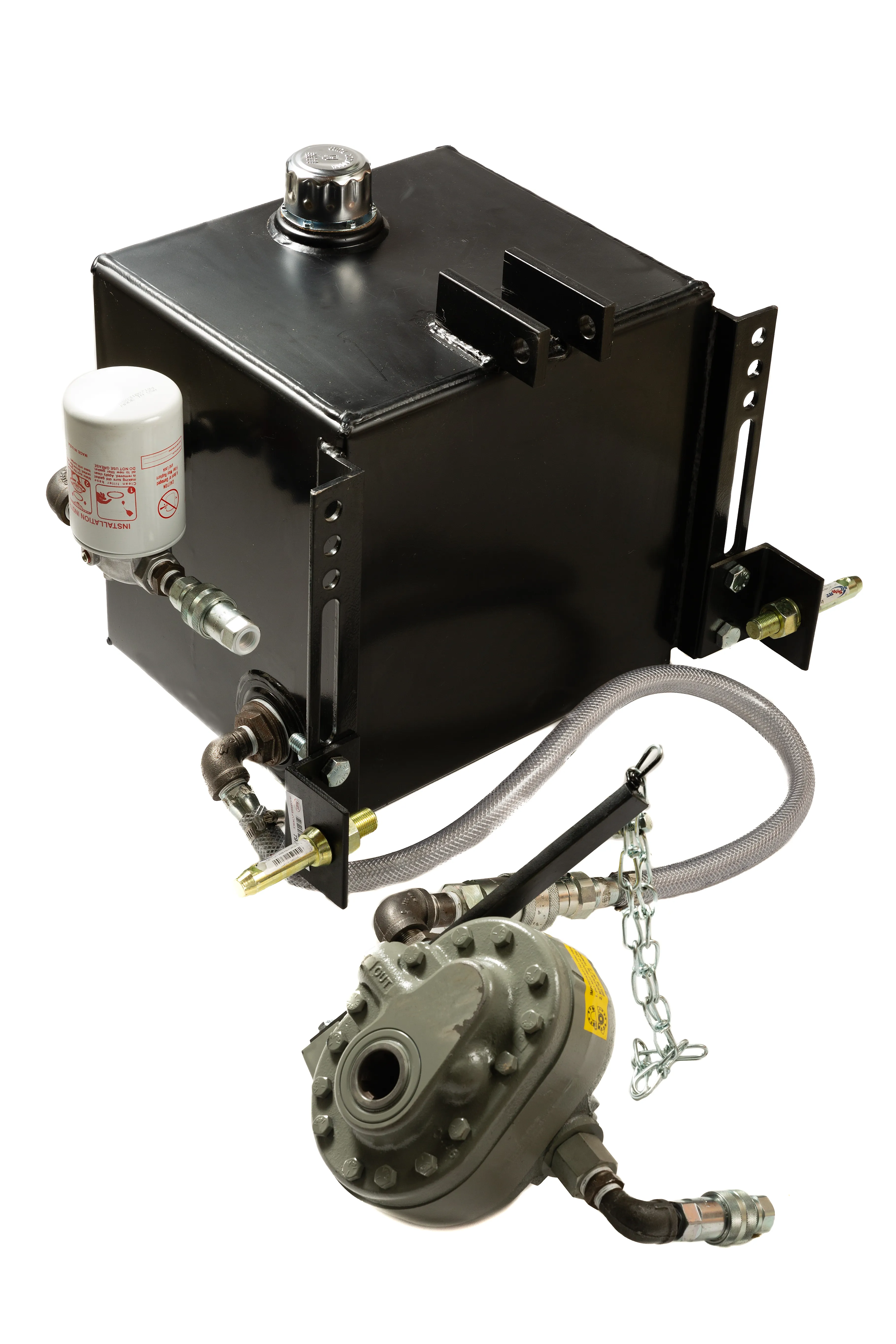

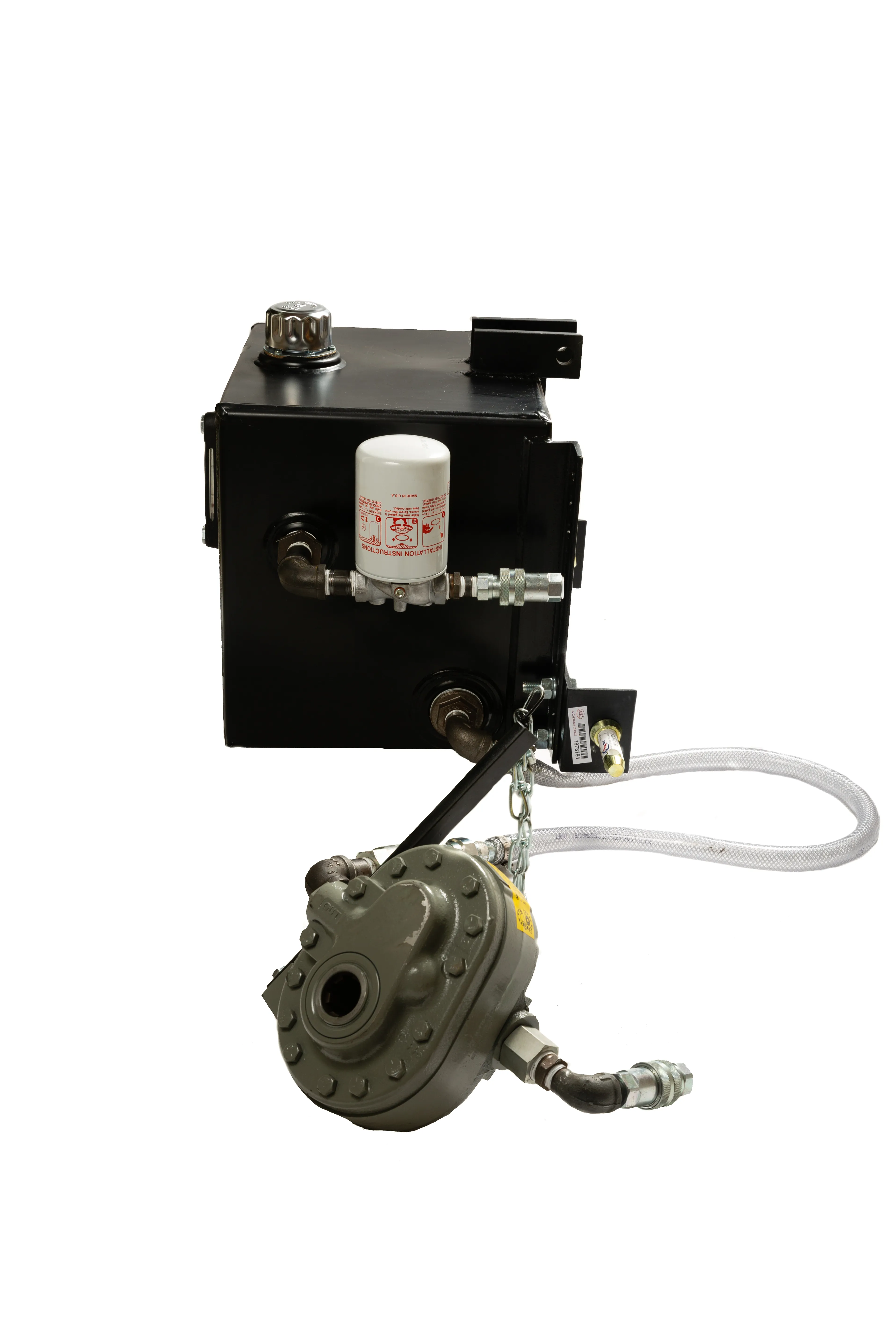

HyPo-Max Power Pack
- PTO pump and hydraulic reservoir
- Oil filter and temperature gauge
- Fittings and 3-point hitch brackets
- Anti-rotation bar for the PTO pump
Put more attachments to work
What Can HyPo-Max Help Run?
HyPo-Max supplies hydraulic power for tractor attachments and equipment with hydraulic motors when the attachment’s flow and pressure requirements match the selected power-pack configuration.
Snow Blowers
Power hydraulically driven snow-removal attachments.
Log Splitters
Add a dedicated hydraulic source for demanding splitting work.
Stump Grinders
Run compatible grinders that need more hydraulic flow.
Brush Mowers
Supply compatible hydraulic-motor mowing attachments.
Working with a loader-mounted or skid-steer-style attachment? Confirm the physical fit, flow, pressure, hose, fitting, and control requirements before ordering.
Check before you order
Make Sure It Fits Your Tractor and Attachment
HyPo-Max is made for tractors with a rear PTO shaft. Because attachments vary, confirm the attachment’s hydraulic needs along with the tractor connection before choosing your setup.
Not sure which option fits? Talk with Green HoeBuild the setup you need
HyPo-Max Specs, Options, and What’s Included
Choose Your Pump
15.4 GPM
16.6 GPM
21.2 GPM
Choose Your Tank
15 gallon
25 gallon
Choose Assembly
Unassembled
Assembled
| Product type | PTO hydraulic power pack for tractors |
|---|---|
| Mounting | 3-point hitch ready |
| Hitch category | Cat 1 hitch pins |
| PTO input | 540 RPM |
| Hydraulic pressure | 2,500 PSI |
| Included | Oil filter, temperature gauge, 3-point hitch brackets, fittings, and PTO pump anti-rotation bar |
| Assembly note | No welding needed to assemble |
Ready for the next step?
Configure Your HyPo-Max and Buy Online
Choose your tank size, pump option, and assembled or unassembled setup on the secure product-order page.
What is a PTO hydraulic power pack?
A PTO hydraulic power pack is a separate hydraulic system powered by a tractor’s PTO. It supplies hydraulic power for attachments that need more flow than the tractor provides through its built-in hydraulics.
Is HyPo-Max the same as a PTO hydraulic pump?
No. The pump is one component. HyPo-Max combines the pump, reservoir, filtration, gauges, fittings, 3-point hitch hardware, and anti-rotation equipment in a complete system.
What tractors does HyPo-Max work with?
HyPo-Max is made for tractors with a rear PTO shaft. It uses 540 RPM PTO input and Cat 1 hitch pins. Confirm your tractor and attachment requirements before ordering.
What attachments can HyPo-Max help power?
Compatible applications may include snow blowers, log splitters, stump grinders, brush mowers, and other attachments with hydraulic motors.
Does HyPo-Max require welding?
No welding is needed to assemble the HyPo-Max system.
Can I order HyPo-Max assembled?
Yes. Choose either an assembled setup or the lower-cost unassembled option when configuring the product online.
Questions before ordering?We’ll help you check the tractor, attachment, and power-pack options.(833) Green-08sales@greenhoecompany.com
